DIK-3188 Mini Tensiometer (2ch Type)
Main Characteristic
This is a small, highly accurate, and fast-response tensiometer. Soil water suction data is stored on a dedicated memory card or in the cloud. Measurement intervals can be selected from 15, 30, or 60 minutes. This logger is equipped with a solar panel, so it can be used outdoors for long periods of time.

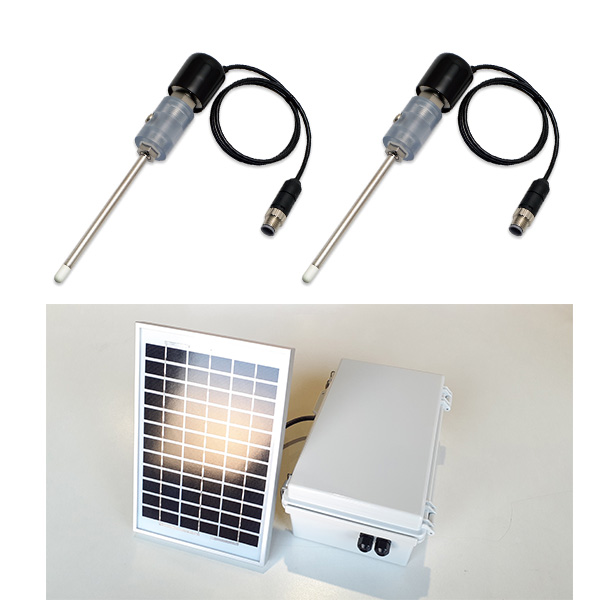

| Component | |
|---|---|
| Sensitive part | 2pce. φ31×L196mm without cable Tension cup φ6.3×L10mm |
| Pressure sensor | 2pce. Rated pressure -98.07kPa Analogue output 1～5VDC Power source DC12V ～ 24V ±10% |
| M5 Datalogger 2ch (with Solar panel) | 1pce. Weight: Approx. 5.3Kg (Incl. solar panel) Analogue input: 2 ch 0 ～ +5VDC |
