DIK-1150 Digital Actual Volumenometer
Main Characteristic
Actual volumenometer measures the actual volume (solid and liquid phases) of soil samples using technology based on Boyle’ s law under constant temperature. It is an indispensable device for measuring the three-phase distribution (solid, liquid and gas phase) of soil.
| Specification | |
|---|---|
| Measuring object | Soil |
| Outside dimensions | Approx. W350×D300×H180mm |
| Measuring range | 0～100ml (=100cm3) |
| Minimum scale | 0.01ml (=0.01cm3) |
| Repeatability | ±1.0%F.S. 25℃ |
| Weight | Approx. 7kg |
| Power supply | AC100V or DC12V |
| Display | LCD 20digit×4lines(with backlighting) |
| Display Language | English |
| Operating temperrature | 5～40℃ |
| Specification | |
|---|---|
| Automatic calibration | Auto-calibration function with test piece. |
| Data storage | Can be stored Max.1000data |
| Clock | Can be manual compensation |
| Display | Display stored data |
| Data clean up | Can be erased stored data |
| Data communication | Can be all stored data transfered to PC with DLM software program |
| Data stored format | Text format (CSV format) |
| File name generation | Product No_number_latitude_longitude.CSV |
Software （DAIKI Download Software Ver2.xx）

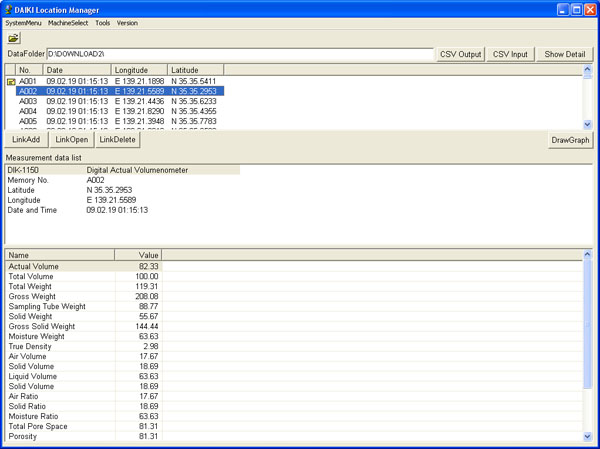

Main View

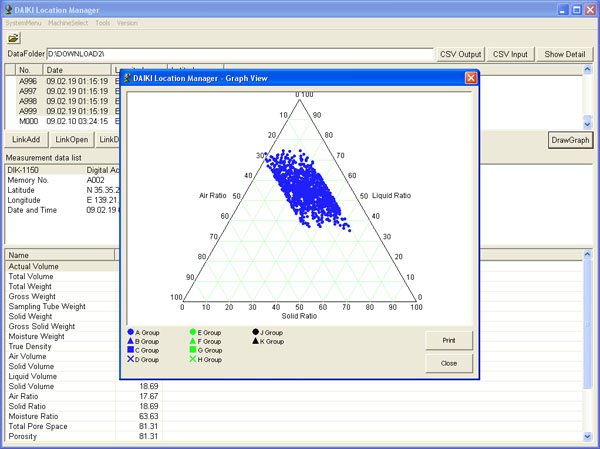

Graph View

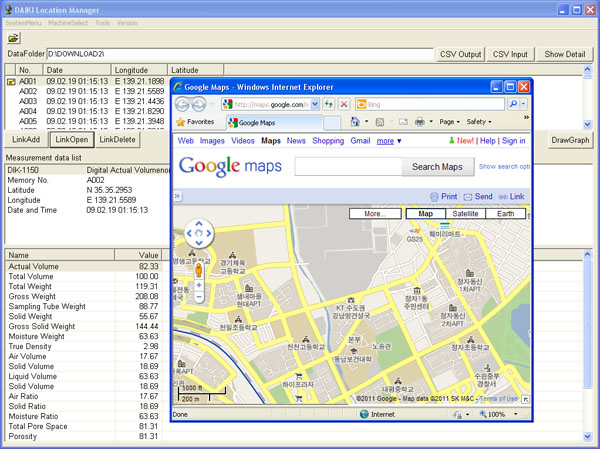

Link File
Video
1. Please select your language for YouTube subtitles.
2. You can translate its subtitles in YouTube.Calibration / Measurement
1. Please select your language for YouTube subtitles.
2. You can translate its subtitles in YouTube.
