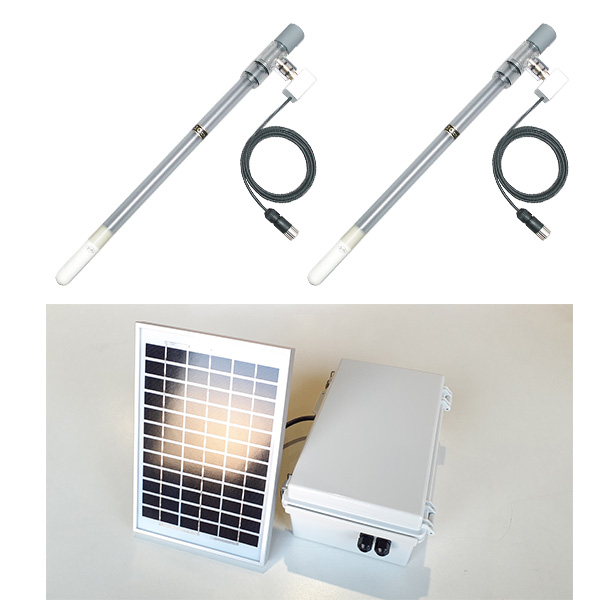

DIK-3050 Tensiometer (Recording type) 2ch
Main Characteristic
The data for soil water suction is stored on a dedicated memory card or in the cloud. Measurement intervals can be selected from 15, 30, or 60 minutes. The logger is equipped with a solar panel, so it can be used outdoors for long periods of time.
| Component | |
|---|---|
| Sensitive part | 2pce. Measuring depth 20cm φ18×L80mm Tension cup L60mm |
| Pressure sensor | 2pce. Rated pressure 0 ～ -100kPa Analogue output 1 ～ 5VDC |
| M5 Datalogger 2ch (with Solar panel) | 1pce. Weight: Approx. 5.3Kg (Incl. solar panel) Analogue input: 2 ch 0 ～ +5VDC |
