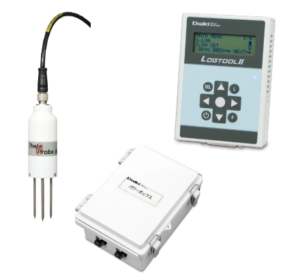

DIK-330E Soil Moisture Meter 2ch Recording Type


Main Characteristic

Soil Moisture Meter (2ch Recoding type)records the data of the soil water content with a microSD Card(2GB) and the data are analyzed with a computer.
It can record data for a month with battery (in a 30 min interval) .
It can be used at a field by storing with the data logger, etc, in a box.


Data logger (DIK-9610)   1 unit
Analogue input8ch,0~+5VDC
Outside dimensionsW107×D170×H45mm
Theta probe (sensor part) 2 pcs.
Soil sampling volume75cm3
InterfaceCable length 5m, Max.length 100m (option)
SizeLength 170.5 ㎜ ,φ39.8 ㎜
(rods length are 60㎜)
Power box (DIK-3046-13) 1 unit
Measuring points2ch
Outside dimensionsW190×H140×D280mm
WeightApprox. 3.3Kg
