Daiki Rika Kogyo Co., Ltd.

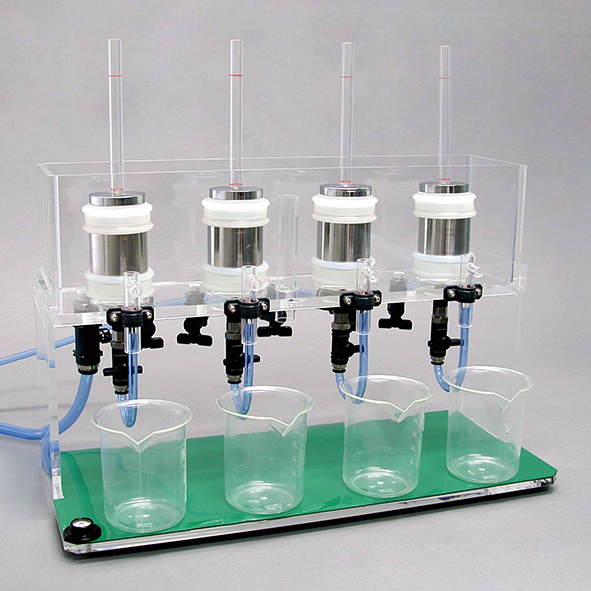

DIK-4012 Permeameter, 4 Fold Type

PDF Catalog

The falling head method is shown.

Main Characteristic

Permeameter, 4 fold type measures a saturated water permeability of the undisturbed soil collected in a sampling tube.

It can be selected the constant head method or the falling head method.
So, it can be measured in wide range of permeability coefficient, such as from 10¯² cm/s to 10¯⁶cm/s.
4 samples of 100ml sampling tubes can be measured at the same time.

Specification
Measuring rangeConstant head method 10-2 – 10-3 (cm/s)
Falling head method 10-3 – 10-6 (cm/s)
MaterialBrass, Aluminium, acrylic resin
Outside dimensionsW530 x D260 x H380mm
AccessoriesStainless sampling tube 100ml 6 pcs.
Beaker 250ml 4 pcs.
Pipette 10ml 1 pce.
Wooden case, Vessel, Rubber Ring.

Falling-Head Permeameter,5 Fold Type –> Click!
