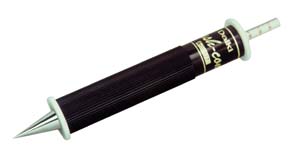

DIK-5553 Push-Cone (Soil Hardness Meter)

PDF Catalog

Main Characteristic

This device measures a resistance of soil easily by pushing a cone vertically into the profile scrapped evenly.

Specification
Measuring range0 – 40mm (0 – 49MPa)
Cone angle25 ° 20′
Strength of spring78.4N/40mm
Outside dimensionsL225mm x diam.40mm
A case is attached.
Weight250g
Total weightApprox370g ( Main unit 250g )
