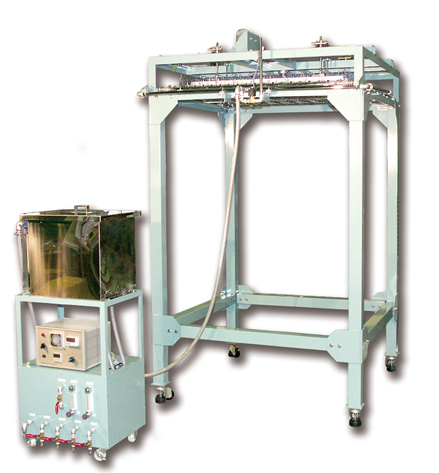

DIK-6000 Rainfall Simulator

Minolta DSC

Main Characteristic

A highly accurate rainfall can be examined by the new rainfall nozzle adoption!!

Rainfall simulator can reproduce a natural rainfall for researching of rainfall effect. There are two standard types of effective rainfall area that is 1m×1m, and 1.5m×1.5m. Moreover, the effective rainfall area can be customized to a request besides two standard types. In this rainfall simulator, the efficient rainfall nozzle is adopted for variety testing. The accuracy of the rainfall distribution in the range of the effective rainfall area is 50%* improved of the conventional model. The nozzle has in the high-velocity revolution (random rainfall mode) can reproduce nearly natural rain drop falls in the effective rainfall area. (The rain drop is dropped at random) The changeable rotational speed of the nozzle can make raindrops in any desired sizes. Setting range of the raindrop size:φ1.7mm ~φ3.0mm.

* It is a measurement value at the time of a new delivery, and not the one to Guarantee the value after continuance is used.

Specification

Artificial raindrop generator 1unit
Effective rainfall area1m2 (1m x 1m) or 2.25m2 (1.5m x 1.5m)
Effective heightApprox. 2m
Rainfall strength10~80㎜/h
Changeable range of raindrop size1.7 – 3.0mm
Distribution accuracy
(※)The measurement technique is based on our regulations, and the one in the range of the effective rainfall.
regular rainfall mode
(the nozzle without velocity revolution) : within ±10%
Random rainfall mode : within ±20%
Water supply tank 1 unit
Power sourceArea 1m2 AC100V
Area 2.25m2 3 phase 200V
