DIK-615A Diver SeriesNEW!

PDF Catalog

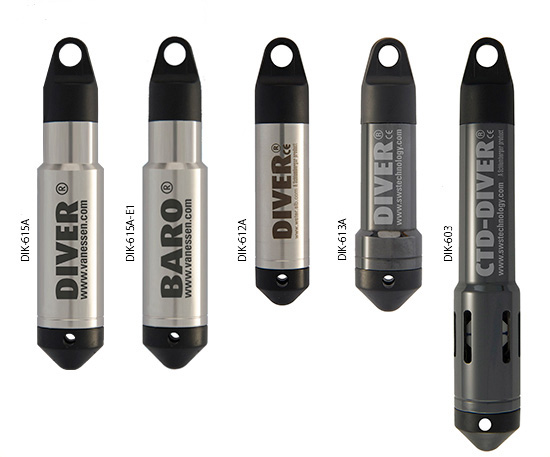

Main Characteristic

The Diver suits for measuring an underground water level in a well. If used at seashore affected by salt water, the Cera Diver or CTD Diver is recommended.


Interchangeable Table for New/Old Diver

DIK-611A Mini-Diver (Specifications) *SalesTermination

DIK-615A-A1DIK-615A-B1DIK-615A-C1DIK-615A-D1DIK-615A-E1
(Baro)
Usable range10m20m50m100mbarometric
compensation
1.5mH2O
Resolution0.2cm0.4cm1cm2cm0.1cm
Sample rate0.5 second to 99 hours
Memory72,000 measurements
Material casing316L stainless steel
Material of pressure sensorAlumina (Al2O3)
EnvironmentMeasurement range : -20℃ to 80℃
Operating Temperature (OT) : 0℃ to 50℃
Resolution : 0.01℃
*DIK-611A-E1 -10℃ to 50℃
Battery lifeapprox. 8 years ~ 10years * depending on sample modes.
Dimensions22mm diameter, 90mm long
Weight50g

*It is also necessary to monitor the atmospheric pressure by hanging another DIVER ( recommend DIK-615A-E1 Baro-DIVER ) in a borehole.

DIK-615A TD-Diver (Specifications) *New

DIK-615A-A1DIK-615A-B1DIK-615A-C1DIK-615A-D1DIK-615A-E1
(Baro)
Usable range10m20m50m100mbarometric
compensation
1.5mH2O
Resolution0.2cm0.4cm1cm2cm0.1cm
Sample rate0.5 second to 99 hours
Memory72,000 measurements
Material casing316L stainless steel
Material of pressure sensorAlumina (Al2O3)
EnvironmentMeasurement range : -20℃ to 80℃
Operating Temperature (OT) : 0℃ to 50℃
Resolution : 0.01℃
*DIK-615A-E1 -10℃ to 50℃
Battery lifeapprox. 8 years ~ 10years * depending on sample modes.
Dimensions18-22mm diameter, 110mm long
Weight104g

*It is also necessary to monitor the atmospheric pressure by hanging another DIVER ( recommend DIK-615A-E1 Baro-DIVER ) in a borehole.

DIK-612A Micro-Diver (Specifications)

DIK-612A-A1DIK-612A-B1DIK-612A-C1DIK-612A-D1DIK-615A-E1
(Baro)
Usable range10m20m50m100mbarometric
compensation
1.5mH2O
Resolution0.2cm0.4cm1cm2cm0.1cm
Sample rate0.5 second to 99 hours
Memory48,000 measurements
Material casing316L stainless steel
Material of pressure sensorAlumina (Al2O3)
EnvironmentMeasurement range : -20℃ to 80℃
Operating Temperature (OT) : 0℃ to 50℃
Resolution : 0.01℃
*DIK-615A-E1 -10℃ to 50℃
Battery lifeapprox. 8 years ~ 10years * depending on sample modes.
Dimensions18mm diameter, 90mm long
Weight50g

*It is also necessary to monitor the atmospheric pressure by hanging another DIVER ( recommend DIK-615A-E1 Baro-DIVER ) in a borehole.

DIK-613A Cera-Diver (Specifications)

DIK-613A-A1DIK-613A-B1DIK-613A-C1DIK-613A-D1DIK-615A-E1
(Baro)
Usable range10m20m50m100mbarometric
compensation
1.5mH2O
Resolution0.2cm0.4cm1cm2cm0.1cm
Sample rate0.5 second to 99 hours
Memory48,000 measurements
Material casingZirconia (ZrO2)
Material of pressure sensorAlumina (Al2O3)
EnvironmentMeasurement range : -20℃ to 80℃
Operating Temperature (OT) : 0℃ to 50℃
Resolution : 0.01℃
*DIK-615A-E1 -10℃ to 50℃
Battery lifeapprox. 8 years ~ 10years * depending on sample modes.
Dimensions22mm diameter, 90mm long
Weight55g

*It is also necessary to monitor the atmospheric pressure by hanging another DIVER ( recommend DIK-615A-E1 Baro-DIVER ) in a borehole.

For Mini-Diver , Mocro-Diver , Cera -Diver
DIK-615A-E1BARO Diver
DIK-611A-F2Diver USB Reading unit (for Windows)
DIK-611A-G2Diver USB interface Cable 1.5m (for Windows)
DIK-611A-H1DDC Cable 1m
DIK-611A-J1DDC Cable 5m
DIK-611A-K1DDC Cable 10m
DIK-611A-L1DDC Cable 15m
DIK-611A-M1DDC Cable 30m
DIK-611A-N1DDC Cable 60m
DIK-611A-P1DDC Cable 80m
DIK-611A-R1DDC Cable 100m
DIK-611A-S1DDC Cable 200m
DIK-600A-A4Stainless Steel Wire φ0.8mm, 50m

DIK-603C CTD-Diver (Specifications)

DIK-603C-A1DIK-603C-B1DIK-603C-C1DIK-615A-E1
(Baro)
Usable range10m50m100mbarometric
compensation
1.5mH2O
Resolution0.2cm0.4cm1cm0.1cm
Sample rate0.5 second to 99 hours
Memory48,000 measurements
Material casingcirconia (ZrO2)
Material of pressure sensorAlumina (Al2O3)
EnvironmentMeasurement range : -20℃ to 80℃
Operating Temperature (OT) : 0℃ to 50℃
Resolution : 0.01℃
*DIK-615A-E1 -10℃ to 50℃
Conductivity Range10μS/cm~120mS/cm
Battery lifeapprox. 8 years ~ 10years * depending on sample modes.
Dimensions18mm-22mm diameter, 135mm long
Weight100g

*It is also necessary to monitor the atmospheric pressure by hanging another DIVER ( recommend DIK-615A-E1 Baro-DIVER ) in a borehole.

For CTD Diver
DIK-615A-E1BARO Diver
DIK-611A-F2Diver USB Reading unit (for Windows)
DIK-611A-G2Diver USB interface Cable 1.5m (for Windows)
DIK-611A-H1DDC Cable 1m
DIK-611A-J1DDC Cable 5m
DIK-611A-K1DDC Cable 10m
DIK-611A-L1DDC Cable 15m
DIK-611A-M1DDC Cable 30m
DIK-611A-N1DDC Cable 60m
DIK-611A-P1DDC Cable 80m
DIK-611A-R1DDC Cable 100m
DIK-611A-S1DDC Cable 200m
DIK-603A-E1Conductivity Calibration Solution 500ml 5mS/cm
DIK-603A-F1Conductivity Calibration Solution 500ml 12.88mS/cm
DIK-603B-D1Conductivity Calibration Solution 500ml 80mS/cm
DIK-603B-F1Conductivity Calibration Solution 500ml 1.4mS/cm
DIK-603C-D1Conductivity Calibration Solution 500ml 111.8mS/cm
DIK-600A-A4Stainless Steel Wire φ0.8mm, 50m
DIK-600A-A4Stainless Steel Wire φ0.8mm, 50m

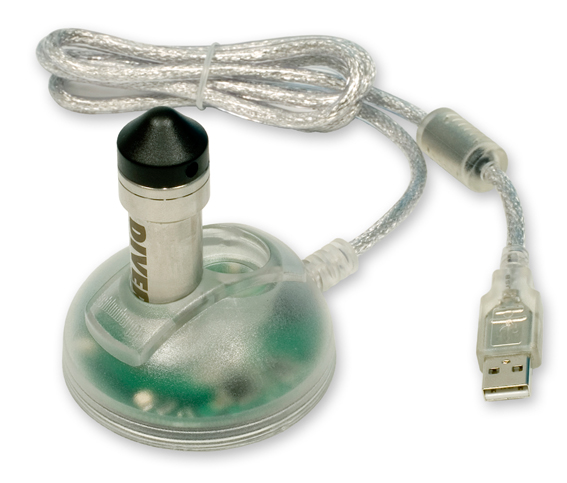

DIK-611A-F2 Diver USB Reading Unit ( for Windows)

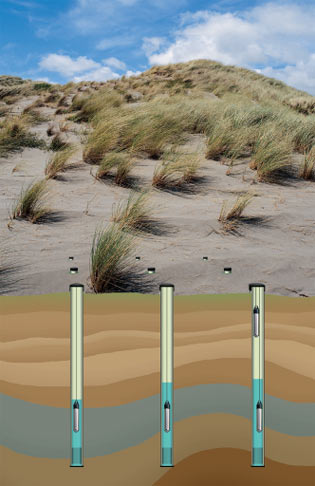

Image of the Diver set-up

Interchangeable Table for New/Old Diver

The Diver and CTD Diver have been done a model changeover on July, 2006 and June, 2010 respectively.
Please note that the reading unit or connecting cable have no interchange.

新旧ダイバー互換表 (2011.3.1現在)
   ダイバーダイバーCTDダイバーミニマイクロセラTD
水位計 水位・導電率計 水位計 ダイバー ダイバー ダイバー ダイバー
 TDダイバーCTDダイバー CTD-Diver Mini-Diver Micro-DiverCera-DiverTD-Diver
品名 製品番号
(本体刻印製品
番号)
DIK-610A-A1 10m用 (DI240)
DIK-610A-A2 20m用 (DI241)
DIK-610A-A4 30m用 (DI242)
DIK-610A-A5 50m用 (DI243)
DIK-610A-A6 100m用 (DI245)
DIK-610A-A3
BARO (DI250)
DIK-603B-A1 10m用 (DI261)
DIK-603B-B1 30m用 (DI263)
DIK-603B-C1 100m用 (DI265)
DIK-603C-A1 10m用 (DI271)
DIK-603C-B1 50m用 (DI272)
DIK-603C-C1 100m用 (DI273)
DIK-611A-A1 10m用 (DI501)
DIK-611A-B1 20m用 (DI502)
DIK-611A-C1 50m用 (DI505)
DIK-611A-D1 100m用 (DI510)
DIK-611A-E1
BARO (DI500)
DIK-612A-A1
10m用 (DI601)
DIK-612A-B1 20m用 (DI602)
DIK-612A-C1 50m用 (DI605)
DIK-612A-D1 100m用 (DI610)
DIK-613A-A1 10m用 (DI701)
DIK-613A-B1 20m用 (DI702)
DIK-613A-C1 50m用 (DI705)
DIK-613A-D1100m用 (DI710)
DIK-615A-A1
10m (DI801)
DIK-615A-B1
20m (DI802)
DIK-615A-C1
50m (DI805)
DIK-615A-D1
100m(DI810)
DIK-615A-E1
BARO(DI800)
(旧製品) (旧製品) (現行製品) (旧製品) (現行製品) (現行製品) (現行製品)
ソフトウエア
EnviroMon××××××
Logger Data ManagerVer. 4.0以前×××××
Logger Data ManagerVer. 5.0以降××
Diver-Office 2008××
Diver-Office 2009××
Diver-Office 2010 ×
Diver-Office 2014 ×
Diver-Office 2017

専用読取装置
RS-232C用(旧) DIK-601A-C2×××××
USB用(旧) DIK-610A-C1×××××

USB用(新)(※1) DIK-611A-F2 ○ (※1)

専用データ回収器
Diver-Mete(旧) DIK-610A-B1××××××

DRC通信ケーブル
RS-232C用(旧) DIK-600A-D1×××××
USB用(旧) DIK-600A-D2×××××

DRCケーブル(旧) DIK-600A-Ex×××××

DDC通信ケーブル
USB用(新) DIK-611A-G2

DDCケーブル(新) DIK-611A-xx××
DDCケーブル(新)
(旧CTDダイバー用)
DIK-603B-xx × × × × ×
(※1)旧読取り器と完全互換。DIK-610A系であればEnviroMonでも使用可能。
