DIK-662B Groundwater Purging Pumps for 9m

PDF Catalog

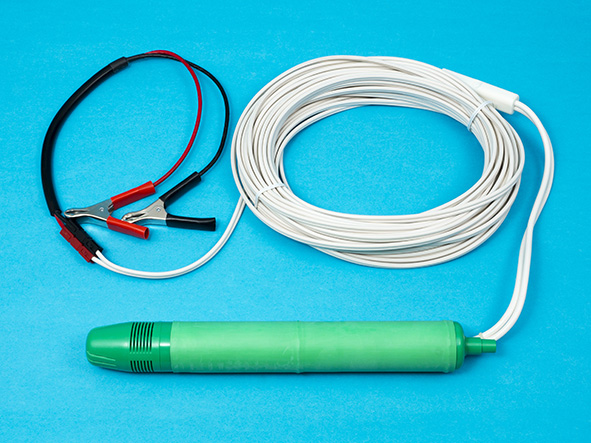

DIK-662B-A1 Groundwater Purging Pumps for 9m

Main Characteristic

Purging Pumps provide an easy-to-use, high-quality, economical solution for purging and well development to a depth of 9m, 15m or 25m.

Specifications
Outside dimensionsdiameter approx. 45mm
length260mm
Power consumptionMax. 9A
Power sourceDC12V(Max.15V)
Using temperature conditons66centigrade or less.
Running operation timeMax.15 minutes or less.
Cable length15m
MaterialPVC Plastic/Stainless steel
Option
DIK-660B-C1PE tube
(diam. 12mm x diam. 9mm, length 11m)
DIK-662B-F1Booster

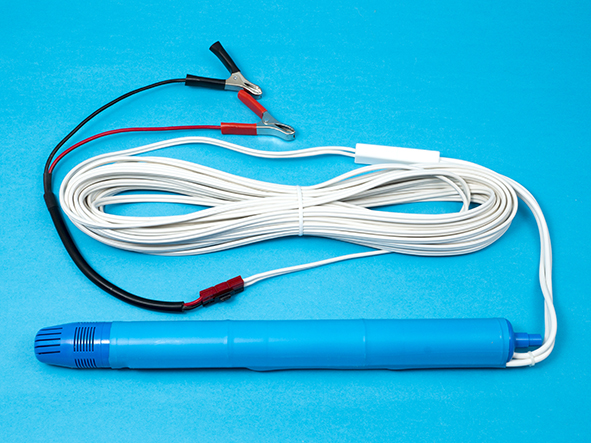

DIK-662B-B1 Groundwater Purging Pumps for 15m

Main Characteristic

Purging Pumps provide an easy-to-use, high-quality, economical solution for purging and well development to a depth of 9m, 15m or 25m.

Specifications
Outside dimensionsdiameter approx. 45mm
length360mm
Power consumptionMax. 14A
Power sourceDC12V(Max.15V)
Using temperature conditons66centigrade or less.
Running operation timeMax.15 minutes or less.
Cable length22m
MaterialPVC Plastic/Stainless steel
Option
DIK-660B-C1PE tube
(diam. 12mm x diam. 9mm, length 11m)
DIK-660B-D1PE tube
(diam. 12mm x diam. 9mm, length 16m)
DIK-662B-F1Booster

DIK-662B-C1 Groundwater Purging Pumps for 25m

Main Characteristic

Purging Pumps provide an easy-to-use, high-quality, economical solution for purging and well development to a depth of 9m, 15m or 25m.

Specifications
Outside dimensionsdiameter approx. 48mm
length525mm
Power consumptionMax. 17A
Power sourceDC12V(Max.15V)
Running operation timeMax.15 minutes or less.
Using temperature conditons66centigrade or less.
MaterialPVC Plastic/Stainless steel
Cable length27m
Option
DIK-660B-C1PE tube
(diam. 12mm x diam. 9mm, length 11m)
DIK-660B-D1PE tube
(diam. 12mm x diam. 9mm, length 16m)
DIK-660B-E1PE tube(diam. 12mm x diam. 9mm, length 13m×2pcs.)
DIK-662B-F1Booster

Warranty information The pump is an article of consumption, and has a no warranty period.
Only warranty replacement is available when it is faulty in first use. Neither available to repair.
