DIK-670B Smart Groundwater Purging Pumps for 20m
Main Characteristic
Smart Groundwater Purging Pumps provide an easy-to-use, high-quality, economical solution for purging and well development to a depth of 20m or 35m. Its 37mm diameter is ideal for use in 5cm or larger monitoring wells.
| Specifications | |
|---|---|
| Outside dimensions | diameter 37mm （Without cable) |
| length | 400mm （Without cable) |
| Power source | DC12V（Max.15V） |
| Running operation time | Max.15 minutes or less. |
| Using temperature condtions | 66℃ and below |
| Material | PVC, Stainless steel |
| Cable Length | Approx. 24m |
| option | |
|---|---|
| DIK-670A-B1 | PE tube （diam. 12mm x φ9mm, length 21ｍ） |
| DIK-662B-F2 | Booster |

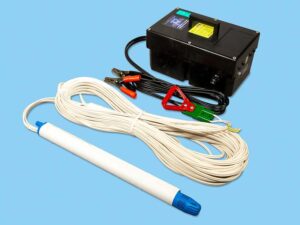

DIK-671A Smart Groundwater Purging Pumps for 35m
Main Characteristic
Smart Groundwater Purging Pumps provide an easy-to-use, high-quality, economical solution for purging and well development to a depth of 20m or 35m. Its 37mm diameter is ideal for use in 5cm or larger monitoring wells.
| Specifications | |
|---|---|
| Outside dimensions | diameter 37mm （Without cable) |
| length | 400mm （Without cable) |
| Power source | DC12V（Max.15V） |
| Running operation time | Max.15 minutes or less. |
| Using temperature condtions | 66℃ and below |
| Material | Pump : PVC, Stainless steel, Booster : Steel |
| Cable Length | Approx. 39m |
| option | |
|---|---|
| DIK-665A-C1 | PE tube （dm. 12mm x φ9mm, length 20ｍ×2 pcs.） |

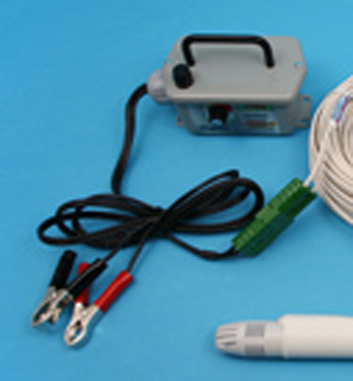

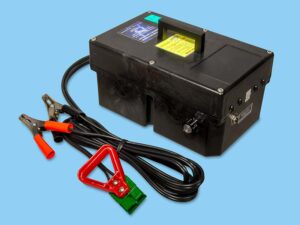

DIK-665A-B2 Booster
Warranty information The pump is an article of consumption, and has a no warranty period.
Only warranty replacement is available when it is faulty in first use.
Neither available to repair
