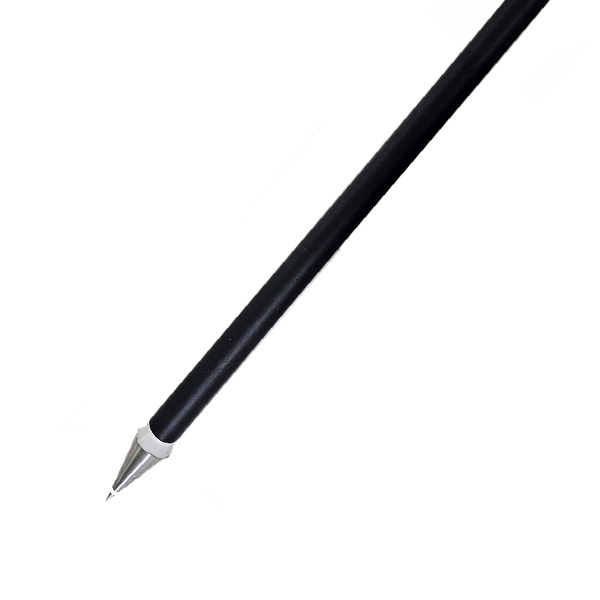

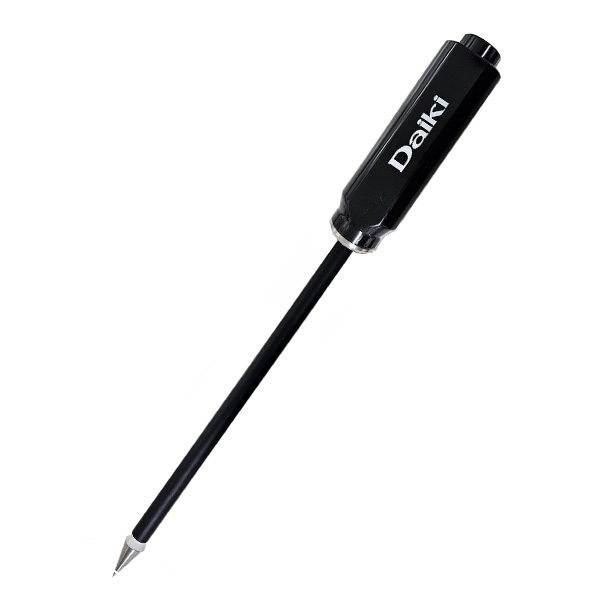

DIK-D300 Cone Type Multi Soil Moisture SensorNEW!
Main Characteristic
Cone type Multi Soil Moisture Sensor is the first sensor in Japan (According to our research) that is possible to select the measurement frequency to suite the soil, making it ideal for measuring soil with high moisture content. (Patent pending)
It can also measure temperature, EC (electrical conductivity), and tilt angle (selectable on or off) simultaneously. As it can measure moisture while inserting into the soil, it is possible to take moisture values in a soil profile.
We plan to sell a system that can measure soil moisture while measuring soil hardness by using it in conjuction with a digital cone penetrometer.
| Specifications Soil Moisture Sensor | |
|---|---|
| Measurement range of Dielectric constant | 1 – 80 (Accuracy) 1 – 40 : ±3%F.S. *1 |
| Measurement range of Volumetric moisture content | 0 – 100% *1 (Saturated) + Measurement accuracy for soil that can be converted using the TOPP equation*2 Dielectric constant less than 40 → ±0.01 m3 m-3 Dielectric constant 40 to 80 → within ±0.03 m3 m-3 + Measurement accuracy for soil that can be converted using Andosol equation*2 Dielectric constant less than 40 → ±0.02 m3 m-3 Dielectric constant 40 to 80 → within ±0.04 m3 m-3 |
| Measurement range of EC | 0 to 20 dS/m (accuracy 0 to 9.2 dS/m → ±3% F.S. @ 20℃ *1) |
| Measurement range of Tilt (3-axis acceleration) | ±90° (X-axis, Y-axis) Accuracy ±0.01° (X-axis, Y-axis) Resolution 0.01° (X-axis, Y-axis) |
| Parameters | 1 – Dielectric constant 2 – Soil moisture content 3 – EC 4 – Tilt angle measurement |
| Measurement frequency | 10MHz to 500MHz |
| Measurement principle | OER Method |
| Guaranteed operating range | -20℃ to +60℃ Water depth up to 10m (excluding cable connector) |
| Cable length | Standard 5m |
| Dustproof/waterproof | IP68 or higher |
| Connection way | USB |
*1: When measuring at 100MHz
*2: Even higher accuracy measurements are possible with custom calibration
Q&A
Q: When I want to measure moisture, do I need to insert the entire sensor part (pin part) into the soil?
A: Yes, it is necessary to insert the entire sensor part into the soil. If it is inserted only halfway, the measured moisture value will tend to be lower than the actual value.
