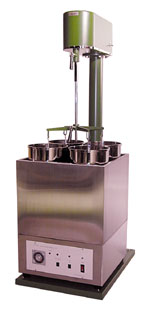

DIK-2012 Aggregate Analyzer with Thermostat

PDF Catalog

Main Characteristic

Aggregate analyzer with thermostat is an instrument to gather standardize size particles without disturbing soil aggregate as much as possible.
Set soil samples in 5 standard mesh sieves, it sorts them per each sieve in the thermostat analysing water tank by rotating and stroking constantly with up and down movement.

Specification
Shaking analyzer W450 x D620 x H1320mm
Analyzing water tank diam.185 x H360mm 4 pcs.
Meshy sieve diam.150 x H45mm 4 sets of 5 sieves.
Diameter of mesh 2.0, 1.0mm,
500, 250, 106 micrometer
Holding pile For 5 4 sets.
Vibrating speed 30/min.
Vibrating width 38mm
Thermostatic water tank Dimension W435 x D435 x H360mm
Materials Stainless steel
Heater 500W x2 pcs.
Stirring pump Power source AC100V 11A

DIK-2001 Aggregate Analyzer –> Click!
