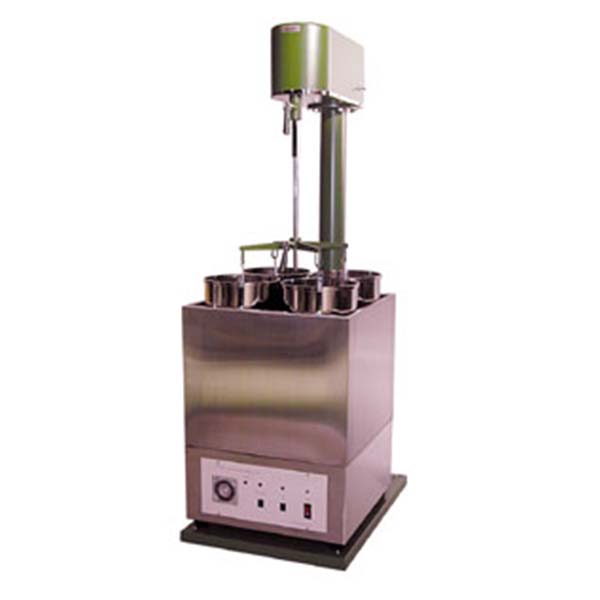

DIK-2013 Aggregate Analyzer with Thermostat
Main Characteristic
Aggregate analyzer with thermostat is an instrument to gather standardize size particles without disturbing soil aggregate as much as possible.
Set soil samples in 5 standard mesh sieves, it sorts them per each sieve in the thermostat analysing water tank by rotating and stroking constantly with up and down movement.
| Specification | |
|---|---|
| Shaking analyzer | W450 x D620 x H1320mm |
| Analyzing water tank | diam.185 x H360mm 4 pcs. |
| Meshy sieve | diam.150 x H45mm 4 sets of 5 sieves. |
| Diameter of mesh | 2.0, 1.0mm, 500, 250, 106 micrometer |
| Holding pile | For 5 4 sets. |
| Vibrating speed | 30/min. |
| Vibrating width | 38mm |
| Thermostatic water tank Dimension | W435 x D435 x H360mm |
| Materials | Stainless steel |
| Heater | 500W x2 pcs. |
| Stirring pump Power source | AC100V 11A |
