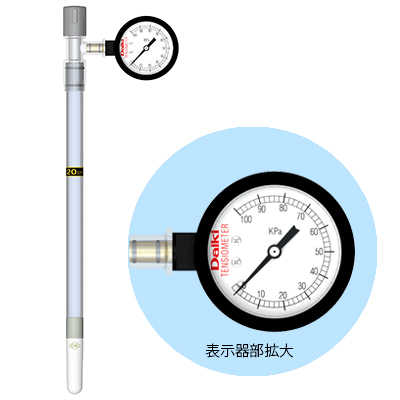

DIK-3162 Tensiometer (Pressure Gauge Type)

Web OrderInquiry

DIK-3162 Tensiometer (Pressure Gauge Type)
DIK-3162 Tensiometer (Pressure Gauge Type)

Main Characteristic

It simmply measures the moisture in the soil and displays the suction on the pressure gauge.


Specification
Sensitive part1pce.
Length 10cm~100cm
(Please specify a certain length)
Tension cup φ18mm×L80mm
(Ceramic cup is H60mm)
Display part1pce.
Rated pressure Water head pressure
0~-100kPa
Accuracy ±1.5% F.S. (at 23±5℃)
Outside dimensions φ67×H32mm
Weight Approx. 105g
