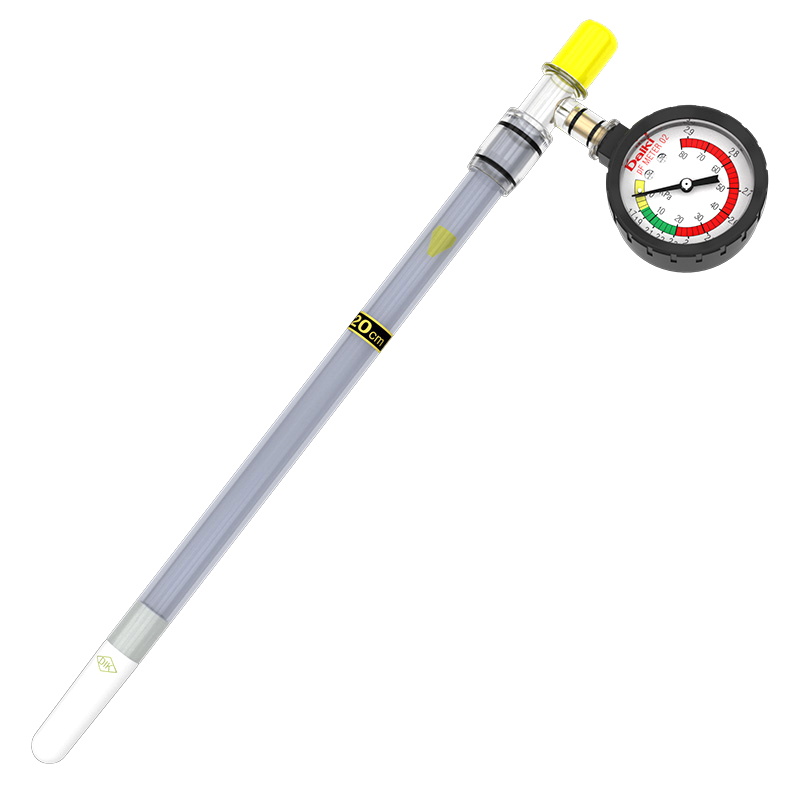

DIK-8333 pF Meter (20cm)
![DIK-8333 pF Meter (20cm)](https://www.daiki.co.jp/wp/wp-content/uploads/2021/03/DIK-8333.jpg)
![DIK-8333 pF Meter (20cm)](https://www.daiki.co.jp/wp/wp-content/uploads/2021/03/pFmeter600600-1.png)
Main Characteristic
pF mater measures the force of the soil moisture suction, and the force is displayed on the gauge attached to the sensitive part.
Specification | |
---|---|
Range of measurement | pF 0 – 2.7 |
Measuring depth | 20 and 40cm |
Length | Approx. 40 and 60cm |
pF Meter (for Pot) –> Click!
Sensitive part | |
---|---|
Ceramic cup | diam.18 x 90mm |
Diameter | diam.18mm |
Ceramic portion | diam.18 x L60mm |
Display part | |
Accuracy | +/-1.5%F.S. (at 23 degrees +/- 5 degrees) |
Outside dimensions | diam.67 x H32mm (Without projection) |
