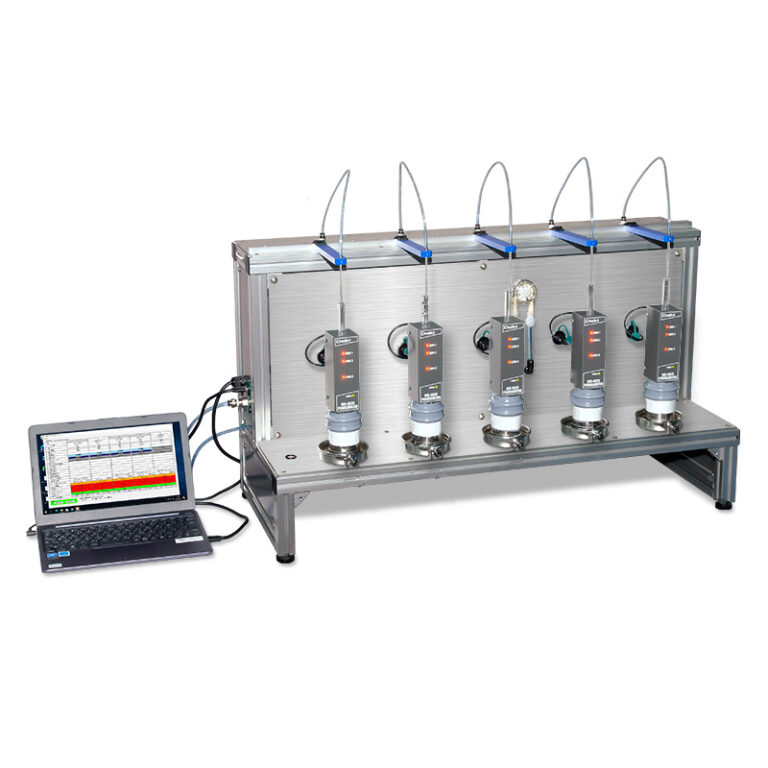

DIK-4065 Automatic water supply type Digital Permeameter, 5 fold typeNEW!
Main Characteristic
Fully-automated for water supply, measurement and data saving of permeability test
● Capable of measuring permeability in a wide range of soils
● Permeability coefficients are automatically calculated and measured data are saved
● Dedicated software enables to measure 5 units simultaneously
● Up to 5 times consecutive measurements and water supplying automatically

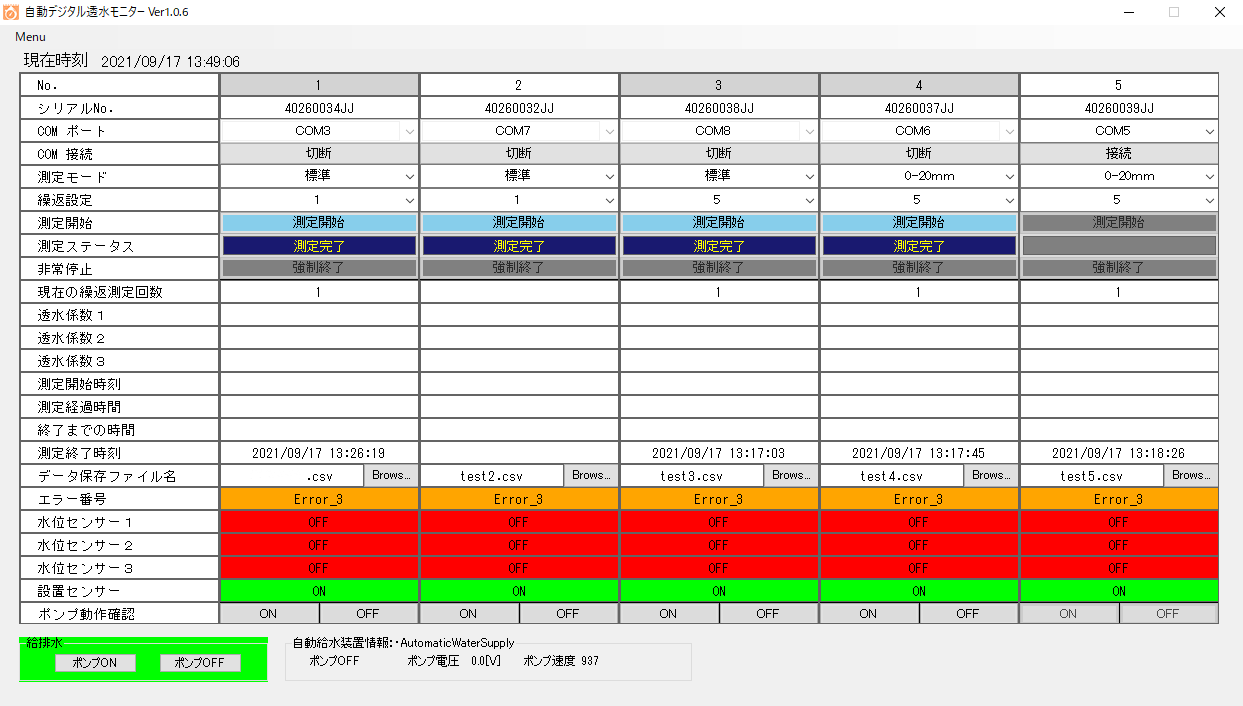

● Measurement status is gained at a glance
● Convenient – Estimated measuring finish time is displayed
Ideal way of measuring for permeability coefficient by DIK-4012 and DIK-4050 in falling-head methods.
To use this product, a PC equipped with a USB connector compatible with Microsoft Windows 10 (32bits, 64bits) is required.
| DIK-4065-11 Main unit | |
|---|---|
| Size | Approx. W860×D342×H508mm |
| Weight | Approx. 26.5kg |
| Material | Aluminum (Main unit) |
| Accessories | ● Water supply tube x 1 pc. ● USB cable x 1 pc. |
| DIK-4026 Digital Permeability Monitor (5 sets) | |
| Size | Approx. W45 x D51 x H132mm |
| Weight | Approx. @300g (x 5 sets) |
| Material | SPCC |
| Measuring range | 10-2cm/sec～ |
| Measuring hours | 4,294,967,295 hours (Based on a theoretical value) |
| Accessories | ● USB cable x 5 pcs. |
| Dedicated software | |
| Supported OS | Microsoft Windows 10 (32-bit / 64-bit) |
| Accessories | |
|---|---|
| DIK-1801 | Stainless sampling tube, 100ml x 1 set (in a case) |
| DIK-4001-13 | Rubber ring x 5 pcs. |
| DIK-4001-15 | Net dish with stopper x 5 pcs. |
| DIK-4055-17 | Scale tube for falling head x 5 pcs. |
| DIK-4001-18 | Weight x 5 pcs. |
| DIK-4001-19 | Net plate x 5 pcs. |
| DIK-4051-18 | Water dish x 5 pcs. |
| DIK-4001-22 | Silicon tube x 5 pcs. （O.DΦ10×I.D.Φ7×L150mm） |
